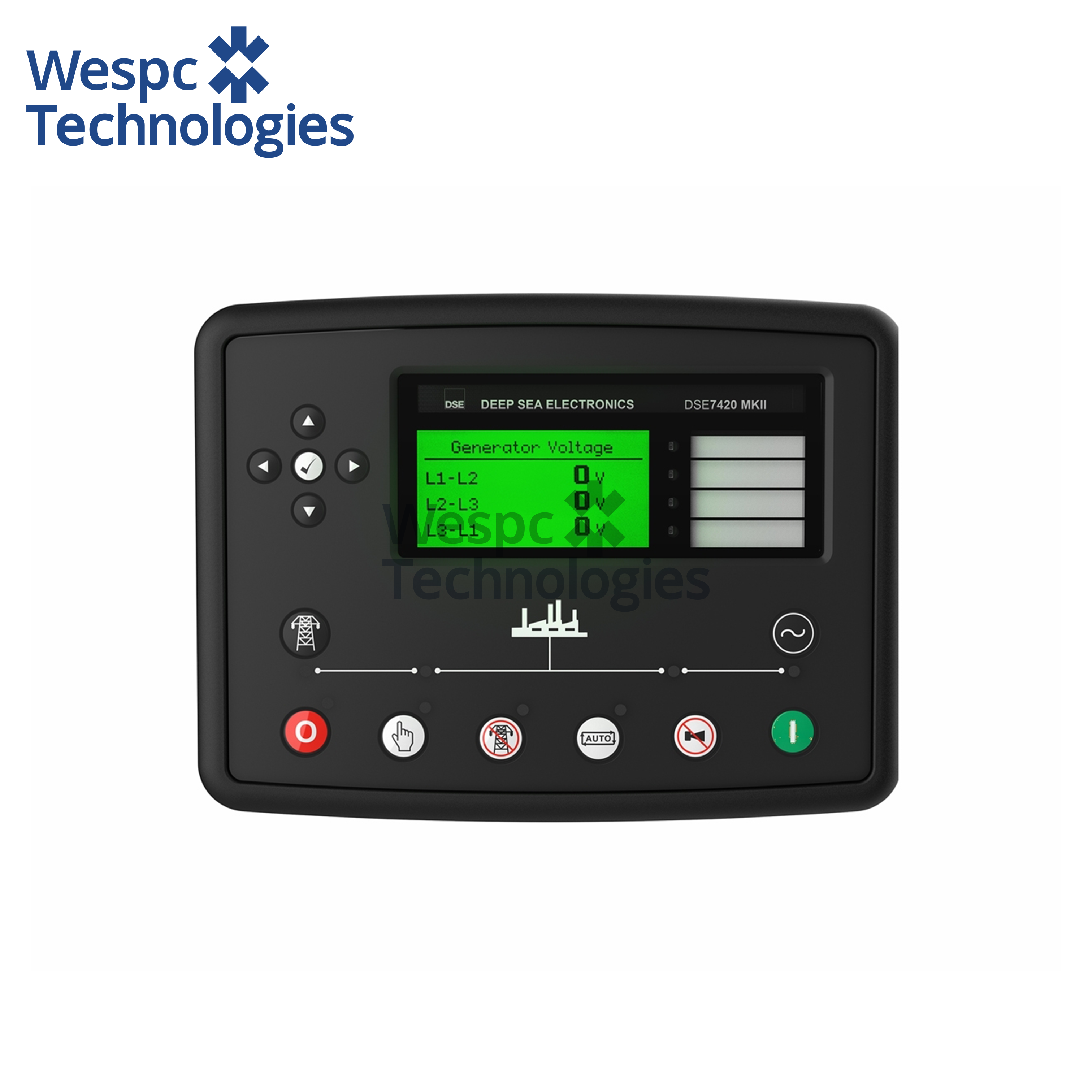

WESPC Original Deep Sea Electronics DSE7420 MKII Auto Mains Failure Control Module

Brand Name : DSE

Model Number : DSE7420

Certification : ISO9001

Place of Origin : Made in UK

MOQ : 5

Price : US $ 470-499(1pcs)

Payment Terms : L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability : in stock

Delivery Time : Within 7 Days

Packaging Details : Carton

Quality : 100% Original

weight : 0.88kg

generator type : Diesel generator

Overall Size : 250.0 mm x 189.0 mm x 50.5 mm

Warranty : 1 Year

Stock : Yes

Contact Now

WESPC Original Deep Sea Electronics DSE7420 MKII Auto Mains Failure Control Module


MOQ
1pcs
Product Name
Auto Mains (Utility) Failure Control Module
Size
250.0 mm x 189.0 mm x 50.5 mm
Operation Temp
-30°C to +70°C
Brand Name
Deep Sea Controller
Material
Plastic

DSE7420 MKII Auto Mains (Utility) Failure Control Module


The DSE7420 MKII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The DSE7420 MKII will also monitor the mains (utility) supply. The module include USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to meet the most demanding industry requirements. The comprehensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE7420 MKII using RS232 or RS485 communications.
The module also feature SNMP functionality for connection to SNMP systems. The module can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.





OVERALL SIZE
250.0 mm x 189.0 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”
PANEL CUTOUT SIZE
220.0 mm x 160.0 mm / 8.66 " x 6.30 "
MAXIMUM PANEL THICKNESS
8.0 mm / 0.3 ”
PRODUCT VARIANTS
7420-03
